Elastic Container Service

  1. EC2
  2. Fargate : Serverless
    1. copilot CLI

Security

  • AWS WAF
  • AWS Shield

Setup

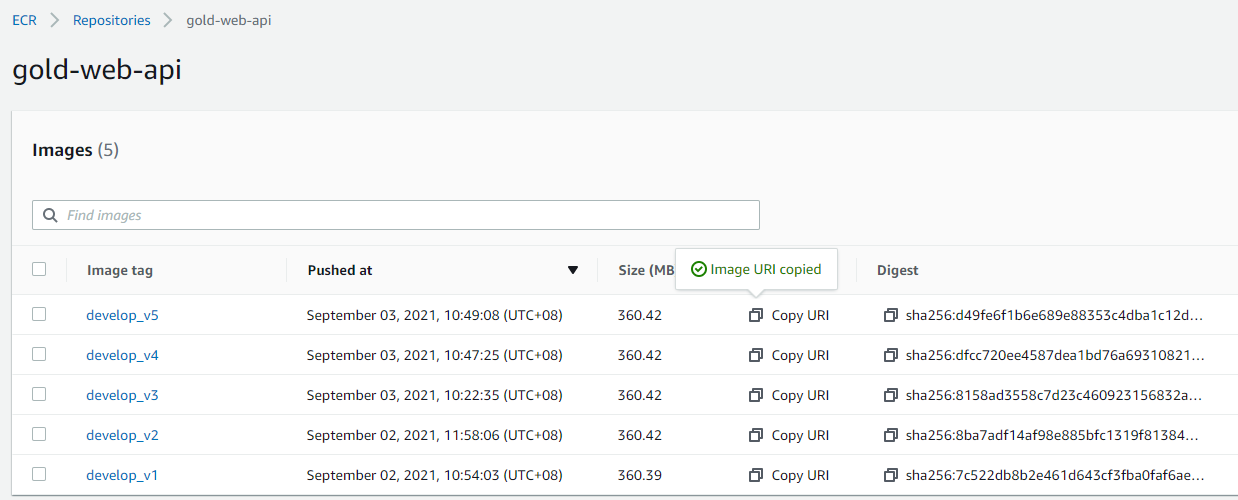

  1. Create ECR to store docker image
    • 903306222264.dkr.ecr.ap-southeast-1.amazonaws.com/gold-web-api:develop_v5
  2. Create Jenkins

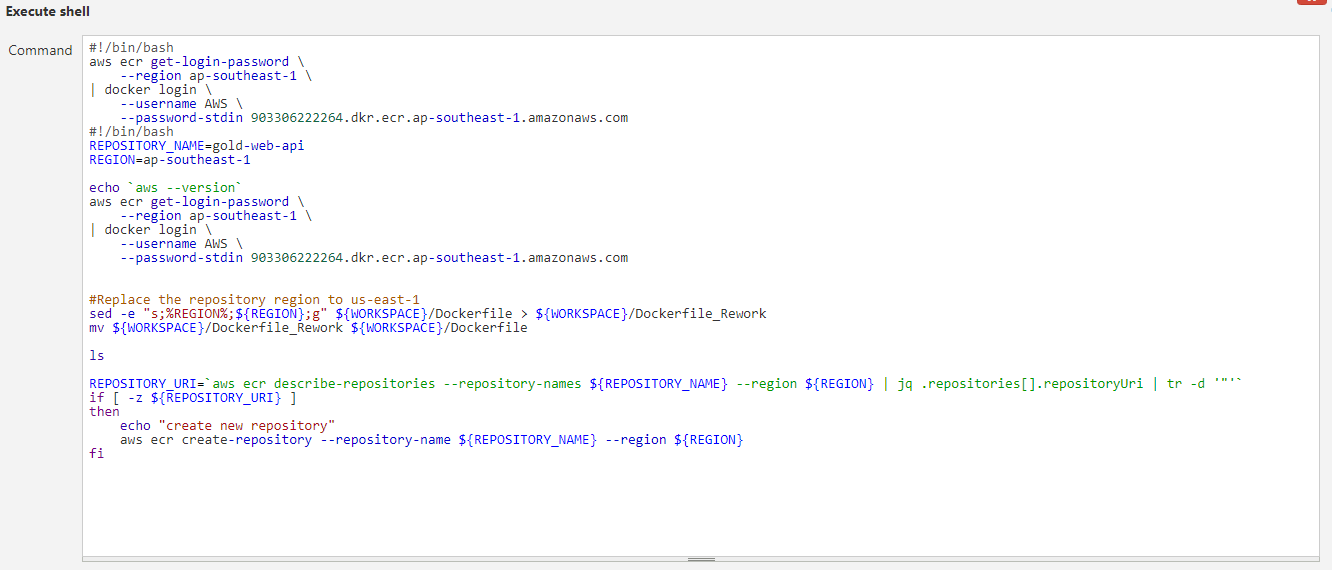

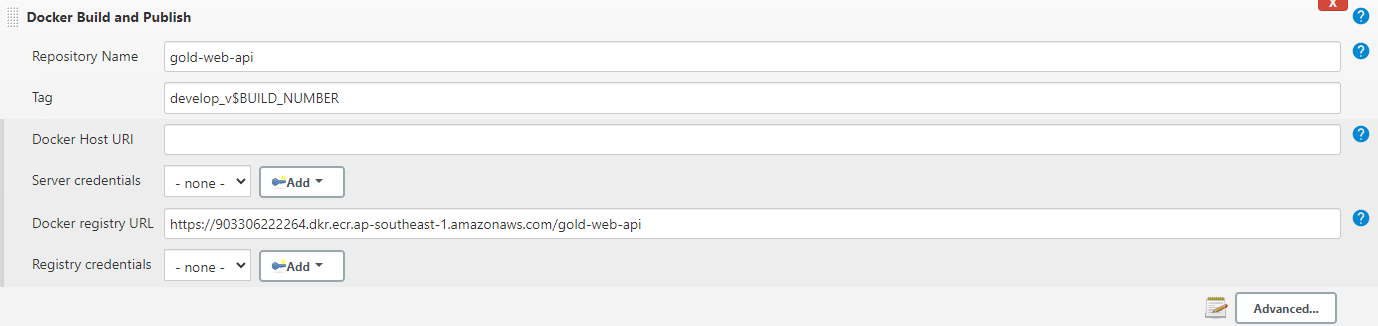

    • To build container image and push to ECR

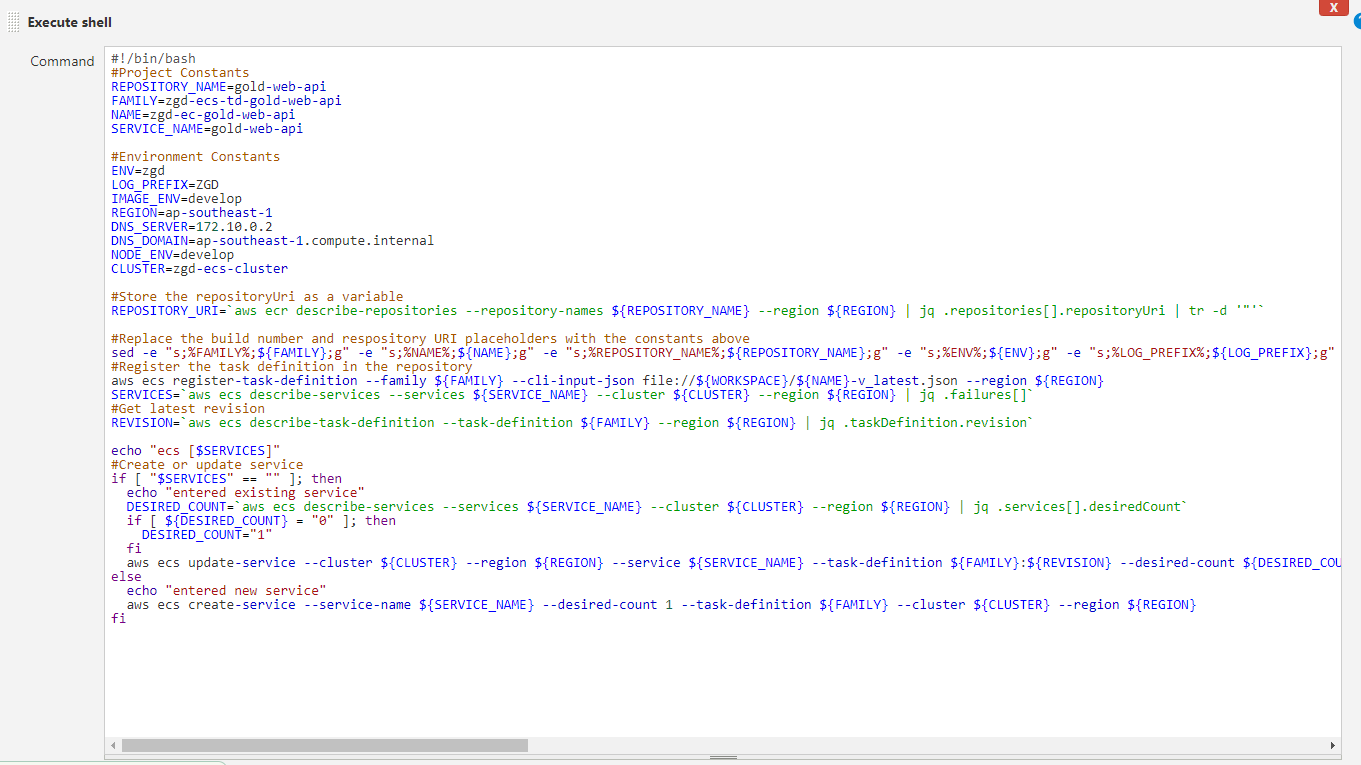

    • To generate taskdefinition.json from config/taskdef-develop.json
    • Note : After delete the ecs instance, seems like script still execute the aws ecs update-service ... instead of aws ecs create-service ...

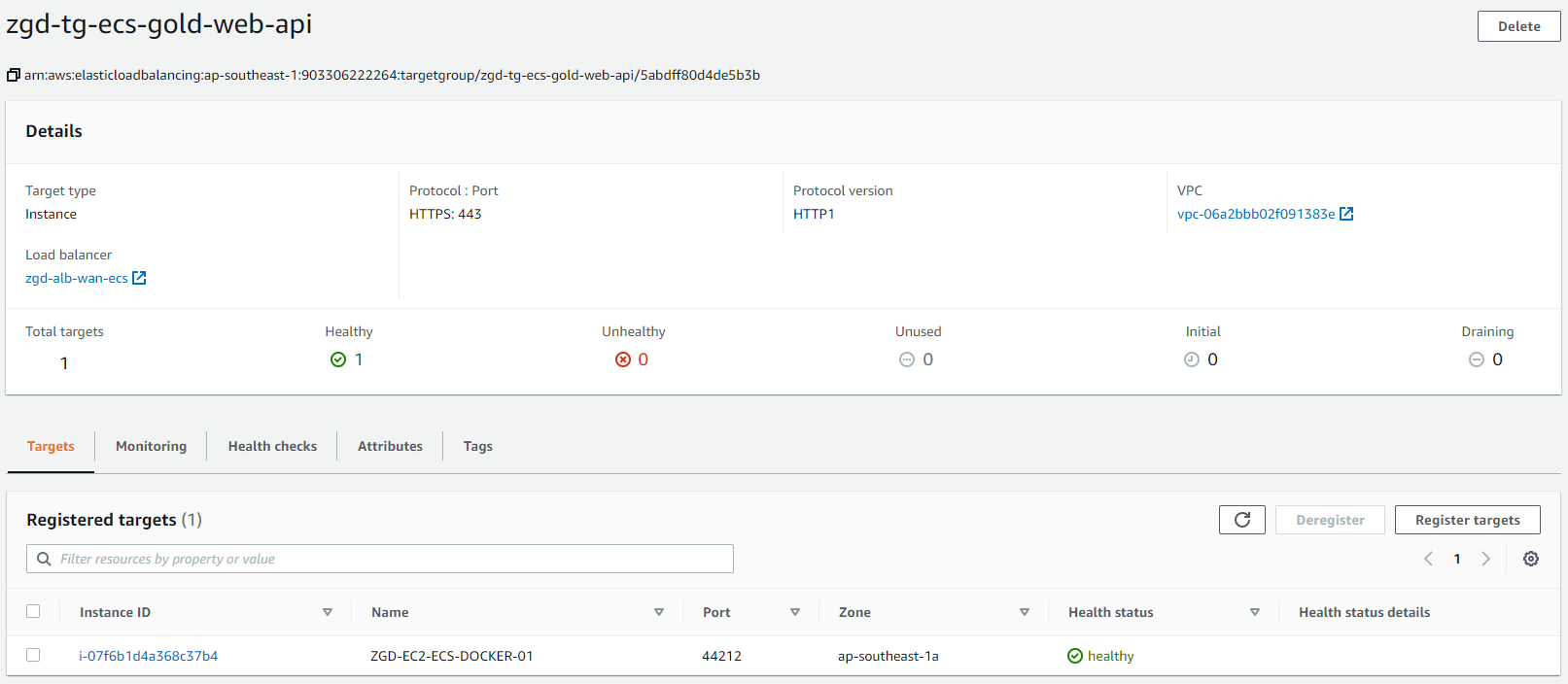

  3. Create Target Group
    • zgd-tg-ecs-gold-web-api
    • To map host port to container port (443)
    • Health Check interval 30s
    • Host port is auto assigned when ECS instance started. Eg. 44212
  4. Create CloudWatch log group
    • log group ZGD-gold-web-api for ECS instance to log
    • Note : If log group not created, container will not be able to start. Fail code 500
  5. Create ECS
    • Cluster : zdg-ecs-cluster
    • Spin-Up instance : gold-web-api

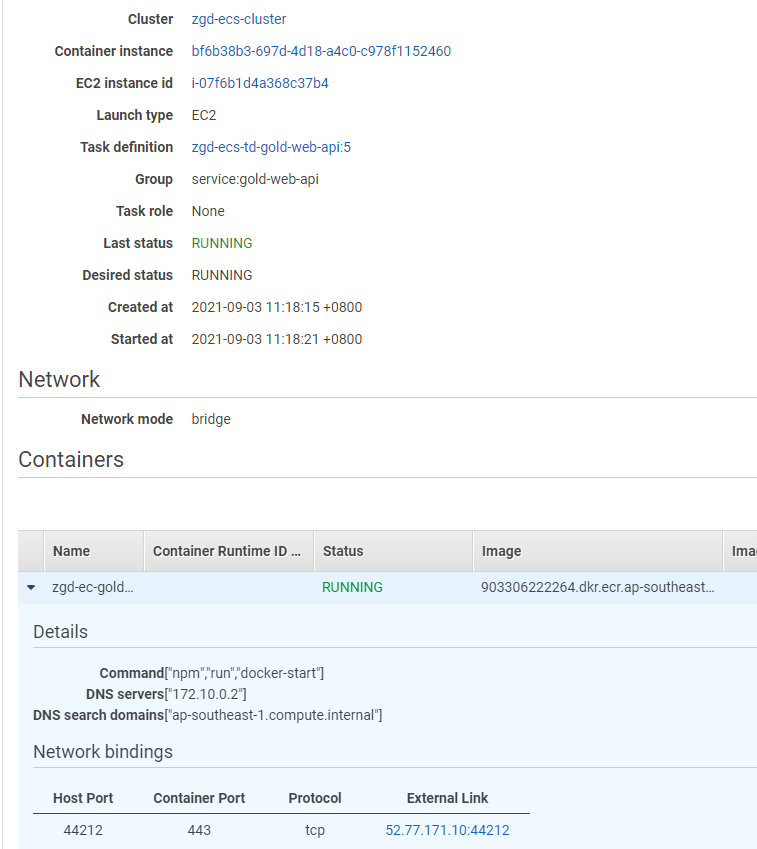

    • Goto Services -> gold-web-api -> Tasks, and select the task to view below
  6. Setup ALB (Application Load Balancer)
    • zgd-alb-wan-ecs

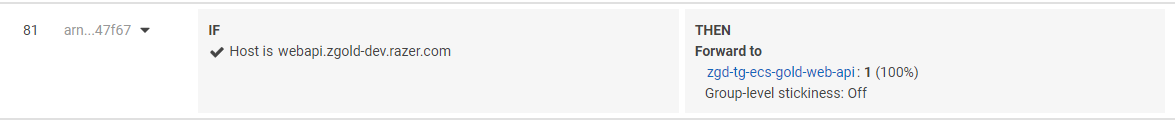

    • Add Listener Rules for HTTPS:443
  7. Setup Route 53
    • Add webapi.zgold-dev.com domain name
    • ONLY Daryl Chew have rights to do this for QA & Dev
    • Production need SRE team

Troubleshoot

  1. Route 53 : Hostname Creation webapi.zgold-dev.com

  2. ALB (Load Balancer) : zgd-alb-wan-ecs

  3. Target Group : zgd-tg-ecs-gold-web-api

  4. ECS : gold-web-api

  5. Cloudwatch : ZGD-gold-web-api.
