esp32-CAM/docs/WebCam_CSI.md

CameraWebServer_ESP32-CAM.ino

• Configure WiFi SSID

  const char* ssid = "Your SSID";
  const char* password = "Your Password";


• Setup Camera CSI pin assignment

    camera_config_t config;
    config.ledc_channel = LEDC_CHANNEL_0;
    config.ledc_timer = LEDC_TIMER_0;
    config.pin_d0 = Y2_GPIO_NUM;
    config.pin_d1 = Y3_GPIO_NUM;
    config.pin_d2 = Y4_GPIO_NUM;
    config.pin_d3 = Y5_GPIO_NUM;
    config.pin_d4 = Y6_GPIO_NUM;
    config.pin_d5 = Y7_GPIO_NUM;
    config.pin_d6 = Y8_GPIO_NUM;
    config.pin_d7 = Y9_GPIO_NUM;
    config.pin_xclk = XCLK_GPIO_NUM;
    config.pin_pclk = PCLK_GPIO_NUM;
    config.pin_vsync = VSYNC_GPIO_NUM;
    config.pin_href = HREF_GPIO_NUM;
    config.pin_sscb_sda = SIOD_GPIO_NUM;
    config.pin_sscb_scl = SIOC_GPIO_NUM;
    config.pin_pwdn = PWDN_GPIO_NUM;
    config.pin_reset = RESET_GPIO_NUM;
    config.xclk_freq_hz = 20000000;
    config.pixel_format = PIXFORMAT_JPEG;


• Connect WiFi network

    WiFi.begin(ssid, password);

    while (WiFi.status() != WL_CONNECTED) {
      delay(500);
      Serial.print(".");
    }


• Start httpd Web Camera Server

    startCameraServer();



app_httpd.cpp

• Setup Web Server endpoint

      if (httpd_start(&camera_httpd, &config) == ESP_OK) {
          httpd_register_uri_handler(camera_httpd, &index_uri);
          httpd_register_uri_handler(camera_httpd, &cmd_uri);
          httpd_register_uri_handler(camera_httpd, &status_uri);
          httpd_register_uri_handler(camera_httpd, &capture_uri);
      }


• index landing page callback

    static esp_err_t index_handler(httpd_req_t *req){
        httpd_resp_set_type(req, "text/html");
        httpd_resp_set_hdr(req, "Content-Encoding", "gzip");
        sensor_t * s = esp_camera_sensor_get();
        if (s->id.PID == OV3660_PID) {
            return httpd_resp_send(req, (const char *)index_ov3660_html_gz, index_ov3660_html_gz_len);
        }
        return httpd_resp_send(req, (const char *)index_ov2640_html_gz, index_ov2640_html_gz_len);
    }


• streaming of camera source

  • fb = esp_camera_fb_get(); : Grab camera image frame buffer
  • frame2jpg(fb, 80, &_jpg_buf, &_jpg_buf_len) : convert a frame buffer to jpg format
  • res = httpd_resp_send_chunk(req, (const char *)_jpg_buf, _jpg_buf_len); : publish frame image

    static esp_err_t stream_handler(httpd_req_t *req){
        camera_fb_t * fb = NULL;
        esp_err_t res = ESP_OK;
        size_t _jpg_buf_len = 0;



• capture image of camera source

  • fb = esp_camera_fb_get(); : Grab camera image frame buffer
  • res = httpd_resp_send(req, (const char *)fb->buf, fb->len); : publish

    static esp_err_t capture_handler(httpd_req_t *req){
        camera_fb_t * fb = NULL;
        esp_err_t res = ESP_OK;
        int64_t fr_start = esp_timer_get_time();

        fb = esp_camera_fb_get();
        if (!fb) {
            Serial.println("Camera capture failed");
            httpd_resp_send_500(req);
            return ESP_FAIL;
        }
    ...
    }

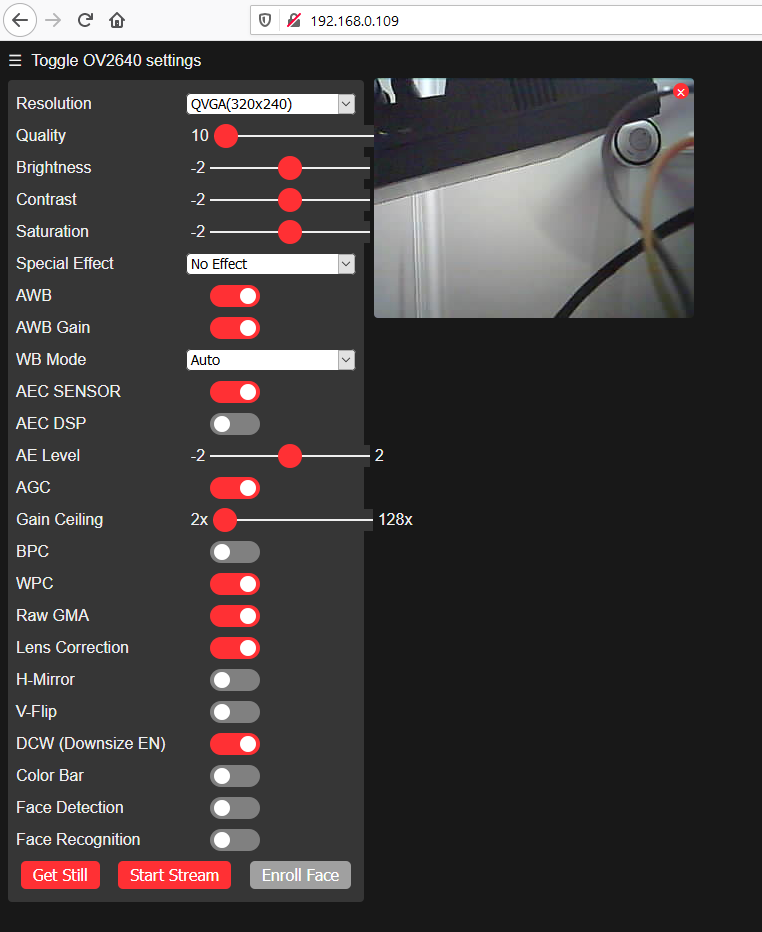

• Browser Page using ESP WebServer Library
